SDO HMI 2011-06-06 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.20 | 71.65 | 8.91 | 44.94 | -20.60 | 19.55 | 32.47 | 235.01 | 0.6155 | 909.1 | 465.5 | |
|
previous
or next observation for the same group /

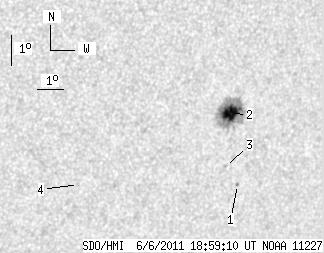

back to the solar disc SDO HMI 2011-06-06 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.87 | -22.82 | 20.50 | 33.42 | 232.65 | 0.6408 | 652.0 | 568.0 | |
| 14.20 | 67.84 | 8.91 | 42.56 | -20.49 | 19.62 | 32.54 | 235.24 | 0.6155 | 1152.1 | 489.0 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -22.23 | 19.86 | 32.78 | 232.99 | 0.6299 | 579.0 | 380.4 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -22.82 | 14.40 | 27.32 | 227.52 | 0.5758 | -669.0 | -536.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
