SDO HMI 2011-06-06 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.02 | 74.16 | 9.48 | 46.65 | -20.77 | 19.05 | 32.52 | 234.74 | 0.6179 | 590.3 | 382.8 | |
|
previous
or next observation for the same group /

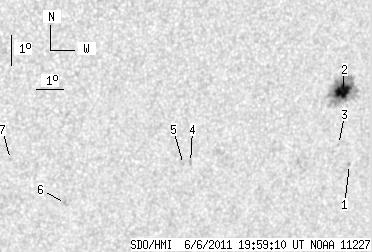

back to the solar disc SDO HMI 2011-06-06 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.88 | -22.88 | 20.52 | 33.99 | 232.98 | 0.6474 | 789.0 | 591.7 | |
| 15.02 | 66.21 | 9.48 | 41.79 | -20.49 | 19.61 | 33.08 | 235.64 | 0.6217 | 1136.6 | 479.3 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -22.22 | 19.90 | 33.37 | 233.43 | 0.6363 | 485.0 | 428.8 | |
| 0.00 | 1.72 | 0.00 | 1.04 | -22.81 | 14.37 | 27.84 | 228.03 | 0.5813 | -687.0 | -552.7 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -22.88 | 14.12 | 27.60 | 227.70 | 0.5792 | -733.0 | -653.1 | |
| 0.00 | 2.71 | 0.00 | 1.61 | -24.17 | 10.05 | 23.52 | 221.68 | 0.5497 | -788.0 | -610.5 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -22.71 | 7.81 | 21.29 | 220.97 | 0.5128 | -704.0 | -585.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
