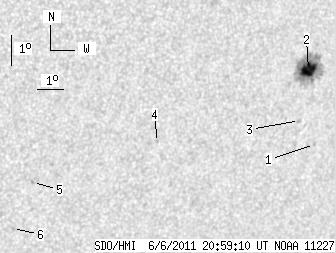

SDO HMI 2011-06-06 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.74 | 76.44 | 9.36 | 48.48 | -20.67 | 19.32 | 33.35 | 235.52 | 0.6263 | 673.8 | 404.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-06 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.71 | -22.91 | 20.49 | 34.52 | 233.31 | 0.6533 | 661.0 | 471.7 | |
| 14.74 | 70.74 | 9.36 | 44.92 | -20.45 | 19.59 | 33.62 | 236.06 | 0.6276 | 1116.6 | 443.8 | |
| 0.00 | 1.90 | 0.00 | 1.22 | -22.12 | 19.67 | 33.70 | 233.80 | 0.6393 | 569.0 | 533.7 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -22.84 | 14.38 | 28.41 | 228.51 | 0.5876 | -612.0 | -510.8 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -24.17 | 10.04 | 24.07 | 222.29 | 0.5551 | -780.0 | -720.5 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -25.71 | 9.62 | 23.65 | 219.82 | 0.5666 | -614.0 | -536.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
