SDO HMI 2011-06-07 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.06 | 144.48 | 17.01 | 94.67 | 17.28 | 19.65 | 37.55 | 297.10 | 0.6554 | -308.0 | -265.5 | |
|
previous
or next observation for the same group /

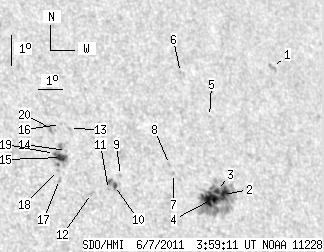

back to the solar disc SDO HMI 2011-06-07 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.34 | 0.00 | 3.13 | 20.98 | 24.60 | 42.50 | 299.56 | 0.7274 | -674.0 | -472.9 | |
| 5.70 | 97.12 | 3.81 | 64.55 | 16.89 | 21.29 | 39.18 | 295.63 | 0.6729 | -737.3 | -402.8 | |
| 1.90 | -2.00 | 1.27 | -2.00 | 17.01 | 21.03 | 38.93 | 295.94 | 0.6704 | -751.6 | 999999 | |
| 10.77 | -2.00 | 7.13 | -2.00 | 16.73 | 20.75 | 38.65 | 295.66 | 0.6659 | -982.0 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.43 | 19.39 | 21.38 | 39.28 | 299.04 | 0.6853 | -482.0 | -411.3 | |
| 0.00 | 0.63 | 0.00 | 0.43 | 20.81 | 20.59 | 38.49 | 301.39 | 0.6838 | -627.0 | -521.1 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 17.56 | 19.42 | 37.31 | 297.53 | 0.6540 | -617.0 | -510.2 | |
| 0.00 | 1.36 | 0.00 | 0.89 | 17.84 | 19.32 | 37.22 | 297.99 | 0.6544 | -672.0 | -467.5 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 17.49 | 17.30 | 35.20 | 298.63 | 0.6286 | -656.0 | -566.2 | |
| 1.63 | 6.61 | 1.03 | 4.18 | 17.17 | 16.99 | 34.89 | 298.34 | 0.6232 | -829.6 | -740.4 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 17.04 | 16.73 | 34.63 | 298.31 | 0.6194 | -594.0 | -600.8 | |
| 0.00 | 2.72 | 0.00 | 1.70 | 16.92 | 16.05 | 33.95 | 298.54 | 0.6104 | -784.0 | -506.0 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 19.00 | 15.65 | 33.55 | 301.88 | 0.6177 | 546.0 | 398.9 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 18.29 | 15.38 | 33.28 | 301.03 | 0.6102 | 376.0 | 256.9 | |
| 5.52 | 18.19 | 3.43 | 11.30 | 18.06 | 15.14 | 33.04 | 300.86 | 0.6060 | 715.7 | 508.2 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 19.13 | 15.34 | 33.24 | 302.29 | 0.6148 | 482.0 | 468.9 | |
| 0.00 | 1.63 | 0.00 | 1.01 | 17.36 | 14.92 | 32.82 | 299.95 | 0.5992 | 472.0 | 507.7 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 17.65 | 14.90 | 32.80 | 300.39 | 0.6007 | 700.0 | 567.9 | |
| 0.54 | -15.00 | 0.34 | -15.00 | 18.19 | 14.90 | 32.80 | 301.21 | 0.6039 | 764.3 | 999999 | |
| 0.00 | 3.80 | 0.00 | 2.37 | 19.00 | 14.92 | 32.82 | 302.39 | 0.6091 | 811.0 | 652.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
