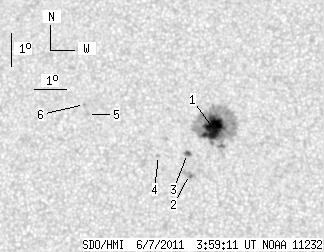

SDO HMI 2011-06-07 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.86 | 134.88 | 16.07 | 68.02 | 9.36 | 336.81 | -5.29 | 29.24 | 0.1869 | -1071.9 | -448.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-07 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.51 | 121.74 | 14.88 | 61.39 | 9.44 | 336.96 | -5.14 | 28.39 | 0.1866 | -1356.1 | -448.9 | |
| 0.00 | 6.43 | 0.00 | 3.23 | 8.02 | 336.24 | -5.86 | 36.02 | 0.1726 | -1058.0 | -848.3 | |
| 2.35 | 2.72 | 1.19 | 1.37 | 8.67 | 336.17 | -5.93 | 34.22 | 0.1824 | -946.7 | -665.5 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 8.60 | 335.27 | -6.83 | 38.25 | 0.1907 | -777.0 | -583.9 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 9.87 | 333.04 | -9.06 | 42.25 | 0.2319 | 730.0 | 464.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 10.18 | 332.93 | -9.17 | 41.67 | 0.2369 | 897.0 | 769.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
