SDO HMI 2011-06-07 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.12 | 135.33 | 17.18 | 68.14 | 9.36 | 336.87 | -4.14 | 23.71 | 0.1778 | -1244.4 | -448.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-07 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

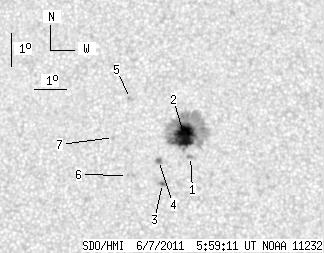

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.72 | 0.00 | 1.36 | 8.80 | 337.17 | -3.83 | 23.45 | 0.1668 | -1116.0 | -838.0 | |
| 31.50 | 120.12 | 15.86 | 60.49 | 9.42 | 336.98 | -4.03 | 23.03 | 0.1778 | -1356.0 | -405.8 | |
| 0.54 | 3.26 | 0.27 | 1.64 | 7.97 | 336.32 | -4.69 | 30.39 | 0.1607 | -1190.7 | -880.3 | |
| 2.08 | 3.89 | 1.05 | 1.96 | 8.68 | 336.18 | -4.82 | 28.94 | 0.1724 | -1003.0 | -843.4 | |
| 0.00 | 2.53 | 0.00 | 1.28 | 10.59 | 335.29 | -5.72 | 28.14 | 0.2086 | -794.0 | -674.6 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 8.22 | 335.23 | -5.77 | 34.98 | 0.1744 | -804.0 | -644.5 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 9.39 | 334.78 | -6.22 | 33.37 | 0.1953 | -816.0 | -490.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
