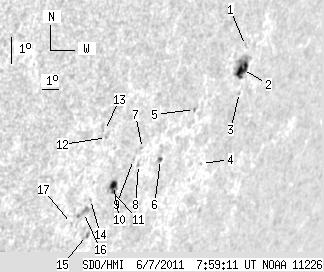

SDO HMI 2011-06-07 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.56 | 53.03 | 16.51 | 51.67 | -21.16 | 36.76 | 56.85 | 245.08 | 0.8625 | 364.1 | 184.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-07 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.85 | -18.50 | 39.15 | 59.24 | 248.70 | 0.8766 | -149.0 | -56.0 | |
| 10.95 | 22.81 | 11.33 | 23.53 | -19.27 | 39.41 | 59.50 | 247.89 | 0.8799 | 662.0 | 533.2 | |
| 0.00 | 0.72 | 0.00 | 0.76 | -20.02 | 39.67 | 59.76 | 247.11 | 0.8831 | 221.0 | 179.4 | |
| 0.00 | 0.72 | 0.00 | 0.75 | -22.34 | 38.75 | 58.84 | 244.32 | 0.8802 | 403.0 | 334.6 | |
| 0.00 | 1.27 | 0.00 | 1.24 | -20.56 | 37.19 | 57.28 | 245.94 | 0.8647 | 510.0 | 473.7 | |
| 0.81 | 2.26 | 0.78 | 2.18 | -22.20 | 36.13 | 56.22 | 243.82 | 0.8596 | 513.1 | 372.6 | |
| 0.00 | 0.63 | 0.00 | 0.59 | -21.83 | 34.86 | 54.95 | 243.89 | 0.8484 | 722.0 | 697.6 | |
| 0.00 | 1.81 | 0.00 | 1.69 | -22.36 | 34.94 | 55.03 | 243.31 | 0.8503 | 584.0 | 488.8 | |
| 0.00 | 0.45 | 0.00 | 0.42 | -22.20 | 34.55 | 54.65 | 243.39 | 0.8467 | 504.0 | 533.6 | |
| 4.44 | 7.97 | 4.07 | 7.32 | -23.05 | 33.92 | 54.01 | 242.22 | 0.8435 | 522.6 | 171.9 | |
| 0.36 | -10.00 | 0.33 | -10.00 | -23.25 | 33.98 | 54.07 | 242.02 | 0.8446 | 211.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.80 | -21.47 | 32.65 | 52.74 | 243.67 | 0.8286 | -529.0 | -393.2 | |
| 0.00 | 0.63 | 0.00 | 0.55 | -21.24 | 32.42 | 52.52 | 243.87 | 0.8260 | -602.0 | -563.6 | |
| 0.00 | 0.63 | 0.00 | 0.57 | -23.52 | 32.90 | 52.99 | 241.38 | 0.8362 | 360.0 | 304.6 | |
| 0.00 | 3.53 | 0.00 | 3.24 | -24.72 | 33.40 | 53.49 | 240.17 | 0.8438 | -561.0 | -504.9 | |
| 0.00 | 5.88 | 0.00 | 5.29 | -23.95 | 32.77 | 52.86 | 240.84 | 0.8363 | -94.0 | -155.1 | |
| 0.00 | 1.00 | 0.00 | 0.89 | -24.31 | 32.32 | 52.41 | 240.27 | 0.8336 | -570.0 | -511.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
