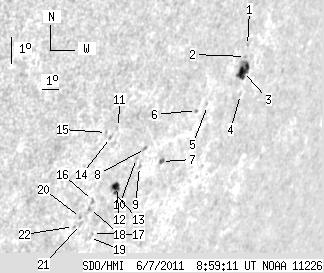

SDO HMI 2011-06-07 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.66 | 48.72 | 19.78 | 47.67 | -21.33 | 36.33 | 56.97 | 244.92 | 0.8637 | 281.8 | 144.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-07 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.94 | -18.47 | 39.15 | 59.79 | 248.84 | 0.8809 | -57.0 | -72.5 | |
| 0.00 | 1.00 | 0.00 | 1.04 | -18.82 | 39.23 | 59.87 | 248.46 | 0.8820 | 387.0 | 353.4 | |
| 11.41 | 16.29 | 12.00 | 17.11 | -19.31 | 39.39 | 60.03 | 247.95 | 0.8840 | 624.6 | 641.9 | |
| 0.00 | 1.27 | 0.00 | 1.35 | -20.05 | 39.67 | 60.31 | 247.18 | 0.8872 | 279.0 | 155.5 | |
| 0.00 | 0.63 | 0.00 | 0.64 | -20.40 | 37.77 | 58.41 | 246.38 | 0.8734 | 345.0 | 330.7 | |
| 0.00 | 1.00 | 0.00 | 0.99 | -20.57 | 37.19 | 57.83 | 246.06 | 0.8691 | 551.0 | 499.4 | |
| 2.63 | 2.72 | 2.56 | 2.65 | -22.23 | 36.08 | 56.72 | 243.91 | 0.8636 | 382.7 | 377.0 | |
| 0.00 | 1.63 | 0.00 | 1.54 | -21.80 | 34.87 | 55.51 | 244.08 | 0.8529 | 670.0 | 620.9 | |
| 0.00 | 1.63 | 0.00 | 1.54 | -22.40 | 34.87 | 55.51 | 243.40 | 0.8543 | 464.0 | 438.3 | |
| 0.00 | 1.00 | 0.00 | 0.93 | -22.13 | 34.54 | 55.18 | 243.61 | 0.8510 | 522.0 | 459.1 | |
| 0.00 | 0.72 | 0.00 | 0.65 | -21.11 | 32.95 | 53.59 | 244.33 | 0.8351 | -270.0 | -276.2 | |
| 4.53 | 8.69 | 4.21 | 8.08 | -23.06 | 33.94 | 54.58 | 242.39 | 0.8483 | 489.0 | 223.3 | |
| 1.09 | -12.00 | 1.01 | -12.00 | -23.25 | 33.94 | 54.58 | 242.16 | 0.8488 | 253.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.97 | -21.44 | 32.69 | 53.32 | 243.88 | 0.8336 | -550.0 | -410.3 | |
| 0.00 | 1.27 | 0.00 | 1.12 | -21.27 | 32.38 | 53.02 | 243.98 | 0.8305 | -539.0 | -412.6 | |
| 0.00 | 1.90 | 0.00 | 1.73 | -23.52 | 32.85 | 53.49 | 241.53 | 0.8405 | 370.0 | 257.0 | |
| 0.00 | 1.27 | 0.00 | 1.18 | -24.62 | 33.53 | 54.17 | 240.49 | 0.8490 | -472.0 | -420.6 | |
| 0.00 | 0.63 | 0.00 | 0.58 | -23.78 | 32.84 | 53.48 | 241.22 | 0.8411 | 176.0 | 95.6 | |
| 0.00 | 1.00 | 0.00 | 0.93 | -24.76 | 33.45 | 54.08 | 240.31 | 0.8487 | -551.0 | -507.3 | |
| 0.00 | 1.36 | 0.00 | 1.23 | -24.08 | 32.52 | 53.16 | 240.78 | 0.8392 | -655.0 | -531.1 | |
| 0.00 | 1.90 | 0.00 | 1.73 | -24.32 | 32.66 | 53.30 | 240.56 | 0.8411 | -602.0 | -472.1 | |
| 0.00 | 0.81 | 0.00 | 0.74 | -24.38 | 32.31 | 52.95 | 240.37 | 0.8383 | -213.0 | -322.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
