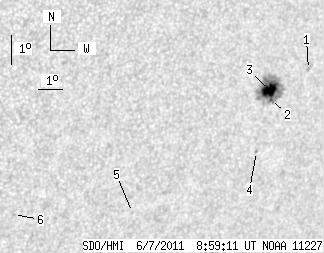

SDO HMI 2011-06-07 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.11 | 64.72 | 10.46 | 44.71 | -20.44 | 19.38 | 40.02 | 239.82 | 0.6993 | 856.7 | 417.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-07 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.27 | -19.62 | 20.96 | 41.60 | 241.71 | 0.7125 | 706.0 | 492.8 | |
| 0.81 | 59.83 | 0.57 | 41.37 | -20.60 | 19.64 | 40.28 | 239.78 | 0.7026 | 531.1 | 429.7 | |
| 14.30 | -2.00 | 9.89 | -2.00 | -20.30 | 19.50 | 40.14 | 240.09 | 0.6998 | 1081.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -22.30 | 19.60 | 40.24 | 237.54 | 0.7107 | 670.0 | 456.5 | |
| 0.00 | 0.81 | 0.00 | 0.55 | -24.31 | 15.06 | 35.70 | 232.19 | 0.6753 | 580.0 | 456.7 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -24.37 | 10.31 | 30.95 | 228.56 | 0.6271 | -562.0 | -498.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
