SDO HMI 2011-06-07 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.44 | 107.19 | 17.86 | 74.73 | 17.17 | 19.63 | 41.91 | 294.83 | 0.7049 | -345.7 | -240.8 | |
|
previous
or next observation for the same group /

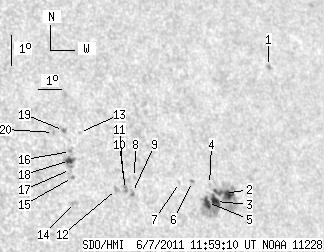

back to the solar disc SDO HMI 2011-06-07 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.41 | 21.07 | 24.76 | 47.04 | 297.71 | 0.7737 | -664.0 | -522.9 | |
| 10.32 | 71.04 | 7.37 | 50.48 | 16.98 | 21.30 | 43.58 | 293.82 | 0.7231 | -672.7 | -366.3 | |
| 6.70 | -2.00 | 4.74 | -2.00 | 16.72 | 20.83 | 43.11 | 293.67 | 0.7170 | -793.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.71 | 17.27 | 20.72 | 43.01 | 294.43 | 0.7177 | -461.0 | -353.9 | |
| 4.98 | -2.00 | 3.50 | -2.00 | 16.69 | 20.47 | 42.76 | 293.77 | 0.7128 | -942.0 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.21 | 17.36 | 20.01 | 42.30 | 294.85 | 0.7102 | -588.0 | -473.6 | |
| 0.00 | 1.45 | 0.00 | 1.01 | 17.33 | 19.44 | 41.73 | 295.05 | 0.7036 | -643.0 | -422.8 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 17.49 | 17.58 | 39.87 | 296.11 | 0.6832 | -576.0 | -465.1 | |
| 0.00 | 2.53 | 0.00 | 1.70 | 17.01 | 17.38 | 39.66 | 295.54 | 0.6787 | -842.0 | -750.5 | |
| 0.00 | 3.26 | 0.00 | 2.18 | 17.11 | 17.11 | 39.40 | 295.80 | 0.6760 | -752.0 | -711.0 | |
| 0.00 | 1.00 | 0.00 | 0.67 | 17.46 | 17.12 | 39.40 | 296.28 | 0.6777 | -603.0 | -496.0 | |
| 0.00 | 2.72 | 0.00 | 1.81 | 17.11 | 16.74 | 39.03 | 295.98 | 0.6717 | -791.0 | -630.5 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 18.93 | 15.70 | 37.98 | 299.06 | 0.6683 | 524.0 | 394.9 | |
| 0.00 | 2.99 | 0.00 | 1.94 | 16.69 | 14.98 | 37.26 | 296.27 | 0.6490 | 630.0 | 545.4 | |
| 0.00 | 1.63 | 0.00 | 1.06 | 17.49 | 15.05 | 37.33 | 297.38 | 0.6536 | 565.0 | 494.0 | |
| 0.00 | 1.36 | 0.00 | 0.89 | 18.32 | 15.17 | 37.46 | 298.49 | 0.6592 | 512.0 | 500.7 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 17.74 | 15.03 | 37.31 | 297.76 | 0.6547 | 635.0 | 503.0 | |
| 3.44 | 6.70 | 2.25 | 4.39 | 18.03 | 15.06 | 37.34 | 298.15 | 0.6564 | 815.3 | 623.9 | |
| 0.00 | 2.81 | 0.00 | 1.85 | 19.00 | 15.06 | 37.35 | 299.50 | 0.6613 | 820.0 | 622.5 | |
| 0.00 | 1.72 | 0.00 | 1.13 | 18.93 | 14.64 | 36.93 | 299.65 | 0.6562 | 708.0 | 599.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
