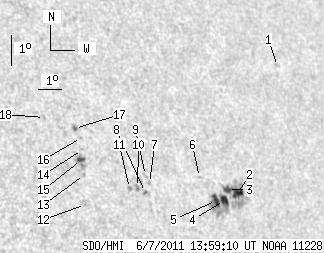

SDO HMI 2011-06-07 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.33 | 100.90 | 18.83 | 71.85 | 17.12 | 19.90 | 43.29 | 294.19 | 0.7201 | -347.2 | -275.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-07 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 1.08 | 21.01 | 24.84 | 48.23 | 297.19 | 0.7850 | -512.0 | -321.3 | |
| 6.79 | 40.54 | 4.96 | 29.56 | 16.92 | 21.47 | 44.86 | 293.26 | 0.7368 | -659.1 | -228.6 | |
| 4.52 | -2.00 | 3.28 | -2.00 | 17.04 | 21.06 | 44.45 | 293.58 | 0.7328 | -658.8 | 999999 | |
| 5.61 | 33.66 | 4.05 | 24.15 | 16.69 | 20.82 | 44.21 | 293.21 | 0.7290 | -748.3 | -533.3 | |
| 5.34 | -4.00 | 3.83 | -4.00 | 16.69 | 20.47 | 43.85 | 293.34 | 0.7250 | -894.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.77 | 17.43 | 19.93 | 43.32 | 294.52 | 0.7217 | -559.0 | -481.2 | |
| 0.00 | 1.27 | 0.00 | 0.87 | 17.23 | 17.72 | 41.10 | 295.19 | 0.6962 | -545.0 | -418.8 | |
| 0.00 | 1.63 | 0.00 | 1.11 | 16.95 | 17.47 | 40.86 | 294.91 | 0.6922 | -919.0 | -789.6 | |
| 0.00 | 1.54 | 0.00 | 1.06 | 17.49 | 17.62 | 41.00 | 295.58 | 0.6961 | -561.0 | -369.5 | |
| 0.00 | 2.71 | 0.00 | 1.85 | 17.11 | 17.18 | 40.56 | 295.26 | 0.6895 | -764.0 | -655.1 | |
| 0.00 | 2.35 | 0.00 | 1.60 | 17.08 | 16.83 | 40.22 | 295.37 | 0.6854 | -837.0 | -683.5 | |
| 0.00 | 0.90 | 0.00 | 0.60 | 16.57 | 14.89 | 38.28 | 295.57 | 0.6606 | 656.0 | 483.3 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 17.52 | 15.09 | 38.47 | 296.83 | 0.6671 | 532.0 | 457.6 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 18.32 | 15.21 | 38.60 | 297.88 | 0.6723 | 418.0 | 378.5 | |
| 3.62 | 7.69 | 2.41 | 5.11 | 18.00 | 15.09 | 38.47 | 297.50 | 0.6694 | 728.8 | 527.9 | |
| 0.00 | 0.63 | 0.00 | 0.42 | 18.71 | 15.28 | 38.66 | 298.39 | 0.6749 | 602.0 | 481.7 | |
| 0.45 | 2.35 | 0.30 | 1.57 | 19.00 | 15.07 | 38.45 | 298.90 | 0.6739 | 740.6 | 603.2 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 19.35 | 13.93 | 37.32 | 300.01 | 0.6628 | 606.0 | 492.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
