SDO HMI 2011-06-07 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.43 | 137.33 | 11.78 | 69.05 | 9.48 | 336.76 | 1.80 | 349.06 | 0.1684 | -982.1 | -461.5 | |
|
previous
or next observation for the same group /

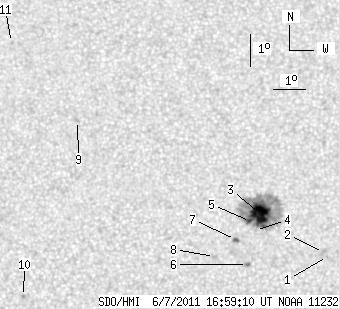

back to the solar disc SDO HMI 2011-06-07 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.32 | 8.22 | 339.06 | 4.11 | 333.39 | 0.1590 | -910.0 | -767.7 | |
| 0.00 | 3.44 | 0.00 | 1.73 | 8.34 | 338.94 | 3.99 | 334.41 | 0.1600 | -847.0 | -661.9 | |
| 22.26 | 120.87 | 11.19 | 60.76 | 9.54 | 336.98 | 2.02 | 348.04 | 0.1687 | -1453.4 | -474.0 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 9.02 | 336.85 | 1.90 | 348.11 | 0.1594 | -501.0 | -380.6 | |
| 0.36 | -3.00 | 0.18 | -3.00 | 9.29 | 336.70 | 1.74 | 349.37 | 0.1636 | -999.8 | 999999 | |
| 0.00 | 2.44 | 0.00 | 1.22 | 7.97 | 336.60 | 1.65 | 348.29 | 0.1408 | -1200.0 | -956.4 | |
| 0.81 | 2.53 | 0.41 | 1.27 | 8.74 | 336.23 | 1.28 | 351.66 | 0.1528 | -1110.2 | -837.6 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 8.22 | 335.59 | 0.63 | 355.58 | 0.1426 | -936.0 | -723.2 | |
| 0.00 | 2.35 | 0.00 | 1.20 | 12.42 | 331.33 | -3.63 | 16.13 | 0.2234 | 108.0 | 275.3 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 6.99 | 329.73 | -5.23 | 36.94 | 0.1512 | 1056.0 | 774.0 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 14.86 | 329.20 | -5.75 | 20.78 | 0.2741 | 848.0 | 676.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
