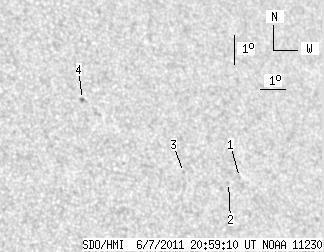

SDO HMI 2011-06-07 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.81 | 0.00 | 2.41 | 21.42 | 5.49 | 32.75 | 305.93 | 0.6244 | -282.2 | -161.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-07 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.64 | 20.63 | 7.79 | 35.05 | 303.14 | 0.6442 | -563.0 | -483.0 | |
| 0.00 | 0.63 | 0.00 | 0.41 | 20.47 | 7.31 | 34.57 | 303.23 | 0.6379 | -663.0 | -542.0 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 20.79 | 5.63 | 32.89 | 304.86 | 0.6210 | -623.0 | -502.0 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 23.19 | 2.33 | 29.60 | 310.83 | 0.6023 | 720.0 | 628.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
