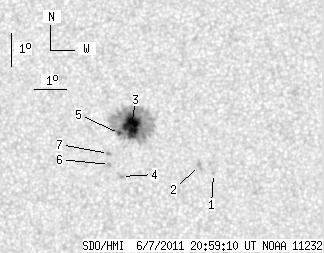

SDO HMI 2011-06-07 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.24 | 133.73 | 13.71 | 67.35 | 9.38 | 337.03 | 4.30 | 335.36 | 0.1786 | -1257.4 | -478.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-07 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.64 | 8.05 | 339.50 | 6.76 | 319.87 | 0.1818 | -799.0 | -584.0 | |
| 0.00 | 4.34 | 0.00 | 2.19 | 8.29 | 339.07 | 6.34 | 322.55 | 0.1804 | -975.0 | -756.5 | |
| 25.88 | 123.23 | 13.03 | 62.07 | 9.49 | 336.98 | 4.25 | 335.88 | 0.1797 | -1379.0 | -446.9 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 7.96 | 336.66 | 3.93 | 333.63 | 0.1533 | -1116.0 | -820.5 | |
| 1.36 | -3.00 | 0.68 | -3.00 | 9.28 | 336.61 | 3.88 | 337.30 | 0.1737 | -992.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 8.33 | 336.29 | 3.56 | 336.77 | 0.1565 | -895.0 | -755.1 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 8.66 | 336.26 | 3.53 | 337.76 | 0.1617 | -1098.0 | -890.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
