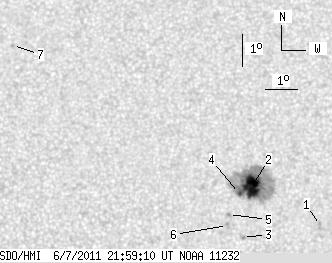

SDO HMI 2011-06-07 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.06 | 129.40 | 13.13 | 65.23 | 9.45 | 336.91 | 4.73 | 333.32 | 0.1831 | -1154.8 | -458.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-07 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.99 | 0.00 | 1.51 | 8.30 | 339.10 | 6.92 | 320.09 | 0.1868 | -766.0 | -726.1 | |
| 24.25 | 118.99 | 12.22 | 59.99 | 9.50 | 336.99 | 4.81 | 333.15 | 0.1839 | -1395.8 | -446.2 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 7.93 | 336.69 | 4.51 | 330.24 | 0.1577 | -1021.0 | -792.2 | |
| 1.81 | -2.00 | 0.91 | -2.00 | 9.29 | 336.61 | 4.43 | 334.45 | 0.1777 | -1050.6 | 999999 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 8.64 | 336.26 | 4.09 | 334.61 | 0.1651 | -1110.0 | -848.8 | |
| 0.00 | 2.35 | 0.00 | 1.18 | 8.30 | 336.23 | 4.05 | 333.88 | 0.1596 | -857.0 | -683.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 13.88 | 329.57 | -2.61 | 10.51 | 0.2433 | 830.0 | 659.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
