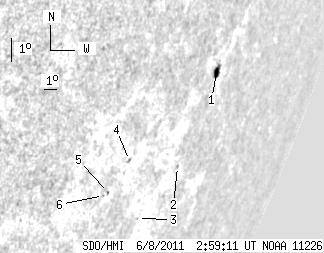

SDO HMI 2011-06-08 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.35 | 12.95 | 6.68 | 18.94 | -20.43 | 38.13 | 68.72 | 248.14 | 0.9419 | 363.2 | 322.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-08 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.35 | 7.97 | 6.68 | 12.24 | -19.17 | 39.40 | 69.99 | 249.65 | 0.9480 | 369.5 | 325.0 | |
| 0.00 | 1.18 | 0.00 | 1.80 | -22.24 | 38.87 | 69.45 | 246.37 | 0.9475 | 255.0 | 155.1 | |
| 0.00 | 0.72 | 0.00 | 1.04 | -23.96 | 37.09 | 67.67 | 244.30 | 0.9397 | 411.0 | 368.4 | |
| 0.00 | 1.45 | 0.00 | 1.84 | -22.02 | 34.52 | 65.11 | 245.91 | 0.9228 | 585.0 | 562.8 | |
| 0.00 | 0.63 | 0.00 | 0.79 | -23.08 | 33.82 | 64.41 | 244.66 | 0.9197 | 247.0 | 139.4 | |
| 0.00 | 1.00 | 0.00 | 1.23 | -23.18 | 33.53 | 64.11 | 244.50 | 0.9180 | 276.0 | 278.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
