SDO HMI 2011-06-08 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.67 | 44.72 | 12.28 | 36.72 | 17.21 | 20.34 | 50.92 | 291.67 | 0.7997 | -324.7 | -312.9 | |
|
previous
or next observation for the same group /

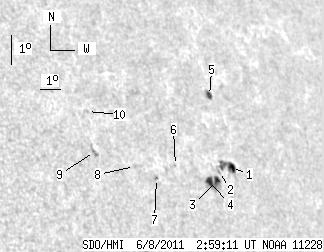

back to the solar disc SDO HMI 2011-06-08 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.89 | 13.40 | 4.14 | 11.29 | 17.09 | 21.70 | 52.29 | 291.14 | 0.8129 | -434.6 | -474.5 | |
| 0.00 | 1.72 | 0.00 | 1.43 | 16.96 | 21.03 | 51.61 | 291.17 | 0.8062 | -552.0 | -468.1 | |
| 2.72 | 17.38 | 2.25 | 14.31 | 16.68 | 20.81 | 51.40 | 290.88 | 0.8034 | -558.9 | -476.4 | |
| 4.25 | -3.00 | 3.49 | -3.00 | 16.65 | 20.40 | 50.98 | 290.95 | 0.7993 | -766.2 | 999999 | |
| 2.81 | 4.25 | 2.40 | 3.63 | 19.40 | 21.53 | 52.12 | 293.95 | 0.8168 | 415.6 | 349.3 | |
| 0.00 | 1.09 | 0.00 | 0.87 | 17.16 | 18.88 | 49.47 | 292.00 | 0.7855 | -519.0 | -383.1 | |
| 0.00 | 0.91 | 0.00 | 0.70 | 16.74 | 17.81 | 48.40 | 291.81 | 0.7735 | -688.0 | -595.5 | |
| 0.00 | 1.63 | 0.00 | 1.25 | 17.13 | 16.89 | 47.48 | 292.58 | 0.7651 | -583.0 | -501.9 | |
| 0.00 | 3.71 | 0.00 | 2.76 | 17.61 | 15.19 | 45.77 | 293.77 | 0.7486 | 680.0 | 448.3 | |
| 0.00 | 0.63 | 0.00 | 0.48 | 18.89 | 15.30 | 45.89 | 295.37 | 0.7541 | 459.0 | 429.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
