SDO HMI 2011-06-08 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.93 | 39.21 | 13.48 | 32.76 | 17.37 | 20.57 | 51.71 | 291.65 | 0.8076 | -298.1 | -227.7 | |
|
previous
or next observation for the same group /

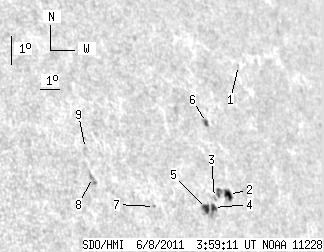

back to the solar disc SDO HMI 2011-06-08 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.93 | 21.26 | 24.31 | 55.45 | 295.20 | 0.8504 | 327.0 | 277.4 | |
| 5.43 | 14.21 | 4.66 | 12.14 | 17.10 | 21.74 | 52.87 | 291.00 | 0.8184 | -454.7 | -441.0 | |
| 0.00 | 1.45 | 0.00 | 1.22 | 17.00 | 20.97 | 52.10 | 291.08 | 0.8109 | -592.0 | -499.4 | |
| 3.44 | 13.04 | 2.88 | 10.86 | 16.69 | 20.79 | 51.92 | 290.74 | 0.8085 | -548.3 | -527.3 | |
| 4.80 | -4.00 | 3.98 | -4.00 | 16.65 | 20.42 | 51.55 | 290.80 | 0.8048 | -736.1 | 999999 | |
| 2.26 | 3.71 | 1.96 | 3.21 | 19.41 | 21.58 | 52.71 | 293.79 | 0.8222 | 440.1 | 347.4 | |
| 0.00 | 1.09 | 0.00 | 0.86 | 16.72 | 17.84 | 48.98 | 291.60 | 0.7793 | -649.0 | -559.9 | |
| 0.00 | 3.71 | 0.00 | 2.79 | 17.65 | 15.21 | 46.35 | 293.62 | 0.7548 | 604.0 | 392.6 | |
| 0.00 | 1.00 | 0.00 | 0.75 | 18.58 | 15.21 | 46.34 | 294.80 | 0.7577 | 567.0 | 419.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
