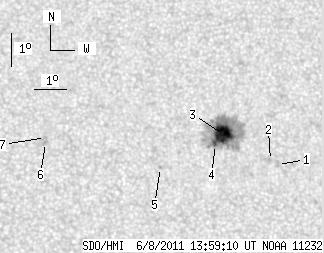

SDO HMI 2011-06-08 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.08 | 123.92 | 11.92 | 64.00 | 9.44 | 336.95 | 13.57 | 304.88 | 0.2832 | -981.8 | -414.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-08 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.08 | 0.00 | 1.60 | 8.58 | 338.74 | 15.36 | 299.11 | 0.3012 | -751.0 | -615.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 8.70 | 338.52 | 15.15 | 299.81 | 0.2990 | -854.0 | -611.8 | |
| 21.54 | 115.22 | 11.13 | 59.54 | 9.50 | 337.06 | 13.68 | 304.74 | 0.2852 | -1356.7 | -439.4 | |
| 1.54 | -3.00 | 0.79 | -3.00 | 9.19 | 336.80 | 13.42 | 304.34 | 0.2786 | -1071.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 8.49 | 335.04 | 11.66 | 305.82 | 0.2476 | -879.0 | -589.1 | |
| 0.00 | 2.17 | 0.00 | 1.10 | 9.26 | 331.46 | 8.09 | 318.61 | 0.2109 | 938.0 | 655.8 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 9.41 | 331.47 | 8.09 | 319.09 | 0.2129 | 880.0 | 703.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
