SDO HMI 2011-06-08 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.69 | 16.38 | 7.76 | 16.26 | 16.97 | 20.89 | 58.61 | 289.57 | 0.8682 | -300.9 | -133.2 | |
|
previous
or next observation for the same group /

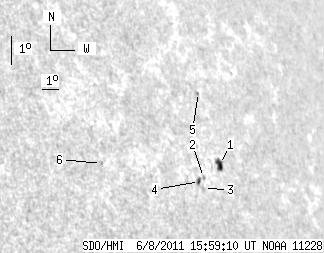

back to the solar disc SDO HMI 2011-06-08 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.70 | 7.69 | 5.82 | 7.86 | 17.11 | 21.88 | 59.61 | 289.53 | 0.8767 | -424.7 | -119.0 | |
| 0.00 | 1.99 | 0.00 | 1.96 | 16.70 | 20.68 | 58.40 | 289.29 | 0.8664 | -433.0 | -365.1 | |
| 0.00 | 1.99 | 0.00 | 1.95 | 16.35 | 20.51 | 58.23 | 288.92 | 0.8644 | -207.0 | -202.0 | |
| 1.99 | 2.90 | 1.94 | 2.82 | 16.57 | 20.37 | 58.10 | 289.20 | 0.8636 | -647.7 | -526.7 | |
| 0.00 | 0.63 | 0.00 | 0.66 | 19.42 | 21.85 | 59.58 | 292.13 | 0.8799 | 475.0 | 406.6 | |
| 0.00 | 1.18 | 0.00 | 1.01 | 17.15 | 15.09 | 52.82 | 291.04 | 0.8179 | 354.0 | 415.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
