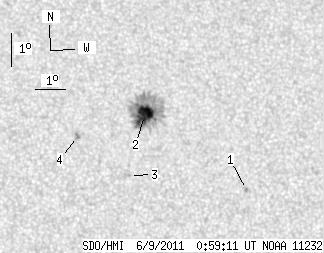

SDO HMI 2011-06-09 00:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.54 | 100.13 | 12.02 | 53.43 | 9.38 | 337.05 | 19.76 | 295.48 | 0.3712 | -1132.9 | -423.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-09 00:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.88 | 7.18 | 340.31 | 23.03 | 287.32 | 0.4082 | -950.0 | -784.6 | |
| 22.54 | 94.24 | 12.02 | 50.31 | 9.46 | 337.07 | 19.78 | 295.64 | 0.3719 | -1178.6 | -394.9 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 7.61 | 336.48 | 19.20 | 291.51 | 0.3518 | -864.0 | -660.0 | |
| 0.00 | 2.99 | 0.00 | 1.57 | 8.81 | 334.85 | 17.57 | 296.56 | 0.3349 | -1035.0 | -827.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
