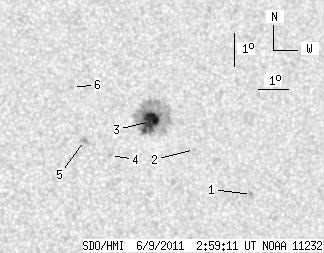

SDO HMI 2011-06-09 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.74 | 109.38 | 10.60 | 58.81 | 9.40 | 337.05 | 20.87 | 294.38 | 0.3876 | -1081.8 | -396.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-09 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.35 | 0.00 | 1.29 | 7.22 | 340.31 | 24.13 | 286.68 | 0.4252 | -976.0 | -674.0 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 8.61 | 338.49 | 22.31 | 291.18 | 0.4042 | -793.0 | -651.8 | |
| 19.74 | 100.24 | 10.60 | 53.91 | 9.47 | 337.08 | 20.90 | 294.49 | 0.3884 | -1181.5 | -363.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 8.43 | 335.71 | 19.53 | 293.28 | 0.3615 | -839.0 | -656.8 | |
| 0.00 | 3.26 | 0.00 | 1.72 | 8.89 | 334.89 | 18.71 | 295.36 | 0.3522 | -1060.0 | -837.3 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 10.52 | 334.59 | 18.41 | 299.88 | 0.3596 | -684.0 | -433.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
