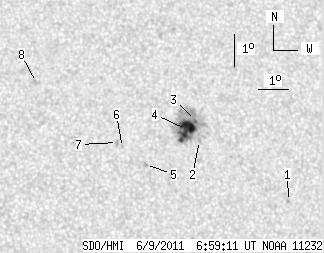

SDO HMI 2011-06-09 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.38 | 97.81 | 11.11 | 53.33 | 9.45 | 336.89 | 22.91 | 292.63 | 0.4177 | -899.3 | -354.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-09 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.71 | 7.24 | 340.39 | 26.41 | 285.40 | 0.4595 | -875.0 | -651.5 | |
| 0.00 | 2.45 | 0.00 | 1.34 | 9.12 | 337.50 | 23.51 | 291.35 | 0.4246 | -84.0 | -94.5 | |
| 1.18 | 85.77 | 0.64 | 46.83 | 9.74 | 337.41 | 23.42 | 292.79 | 0.4267 | -671.4 | -384.0 | |
| 19.20 | -3.00 | 10.47 | -3.00 | 9.46 | 337.08 | 23.10 | 292.44 | 0.4204 | -1191.5 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.02 | 8.39 | 335.65 | 21.66 | 291.14 | 0.3932 | -891.0 | -699.0 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 8.91 | 334.92 | 20.93 | 293.06 | 0.3852 | -537.0 | -549.5 | |
| 0.00 | 2.35 | 0.00 | 1.26 | 9.07 | 334.76 | 20.78 | 293.58 | 0.3838 | -896.0 | -764.0 | |
| 0.00 | 3.35 | 0.00 | 1.78 | 10.92 | 332.22 | 18.23 | 301.02 | 0.3600 | 801.0 | 694.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
