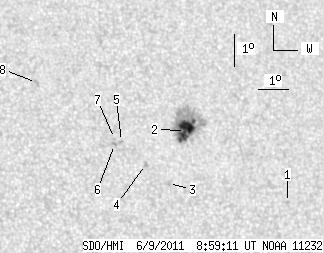

SDO HMI 2011-06-09 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.00 | 85.13 | 12.66 | 46.79 | 9.38 | 336.82 | 23.93 | 291.61 | 0.4323 | -911.1 | -333.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-09 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.46 | 7.22 | 340.43 | 27.54 | 284.78 | 0.4764 | -808.0 | -631.9 | |
| 23.00 | 73.18 | 12.66 | 40.31 | 9.44 | 337.10 | 24.21 | 291.49 | 0.4366 | -1115.5 | -331.8 | |
| 0.00 | 1.99 | 0.00 | 1.09 | 7.81 | 336.42 | 23.53 | 288.34 | 0.4184 | -669.0 | -518.7 | |
| 0.00 | 2.35 | 0.00 | 1.28 | 8.40 | 335.68 | 22.79 | 290.23 | 0.4102 | -914.0 | -673.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 9.11 | 334.93 | 22.04 | 292.50 | 0.4027 | -697.0 | -596.7 | |
| 0.00 | 1.90 | 0.00 | 1.03 | 9.01 | 334.69 | 21.80 | 292.49 | 0.3986 | -795.0 | -690.3 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 9.20 | 334.70 | 21.81 | 292.91 | 0.3999 | -648.0 | -541.0 | |
| 0.00 | 2.63 | 0.00 | 1.40 | 10.93 | 332.24 | 19.35 | 299.59 | 0.3757 | 741.0 | 668.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
