SDO HMI 2011-06-09 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.39 | 76.06 | 8.66 | 42.80 | 9.41 | 337.03 | 26.89 | 289.56 | 0.4754 | -978.7 | -433.7 | |
|
previous
or next observation for the same group /

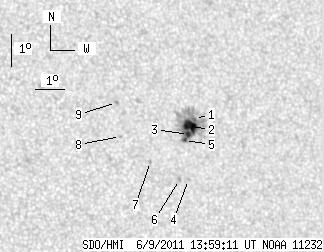

back to the solar disc SDO HMI 2011-06-09 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.91 | 69.44 | 0.51 | 39.13 | 9.78 | 337.32 | 27.18 | 290.14 | 0.4814 | -704.4 | -408.1 | |
| 10.86 | -1.00 | 6.12 | -1.00 | 9.54 | 337.16 | 27.02 | 289.74 | 0.4779 | -1120.8 | 999999 | |
| 2.26 | -1.00 | 1.27 | -1.00 | 9.29 | 337.07 | 26.93 | 289.30 | 0.4755 | -1202.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 7.91 | 336.97 | 26.82 | 286.53 | 0.4681 | -646.0 | -501.9 | |
| 1.36 | -1.00 | 0.76 | -1.00 | 9.10 | 336.92 | 26.78 | 289.02 | 0.4725 | -908.7 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 7.91 | 336.66 | 26.51 | 286.70 | 0.4635 | -813.0 | -649.8 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 8.46 | 335.70 | 25.56 | 288.43 | 0.4517 | -944.0 | -797.3 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 9.23 | 334.74 | 24.60 | 290.73 | 0.4411 | -712.0 | -572.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 10.28 | 334.69 | 24.54 | 293.01 | 0.4458 | -818.0 | -693.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
