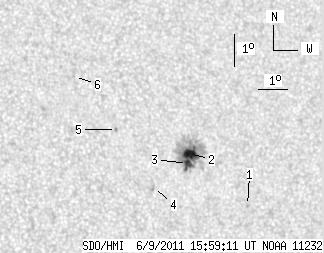

SDO HMI 2011-06-09 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.67 | 78.57 | 7.20 | 44.69 | 9.46 | 337.02 | 27.98 | 289.02 | 0.4916 | -882.0 | -409.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-09 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.68 | 7.96 | 339.05 | 30.01 | 285.11 | 0.5151 | -688.0 | -571.5 | |
| 8.69 | 73.05 | 4.94 | 41.58 | 9.57 | 337.14 | 28.10 | 289.15 | 0.4937 | -1138.6 | -403.9 | |
| 3.98 | -2.00 | 2.26 | -2.00 | 9.26 | 337.04 | 28.00 | 288.61 | 0.4909 | -1147.3 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.22 | 8.52 | 335.80 | 26.76 | 287.83 | 0.4697 | -861.0 | -678.9 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 10.31 | 334.67 | 25.64 | 292.24 | 0.4618 | -781.0 | -640.1 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 11.96 | 333.39 | 24.35 | 296.63 | 0.4531 | 669.0 | 508.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
