SDO HMI 2011-06-09 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.76 | 66.72 | 7.87 | 38.11 | 9.46 | 336.94 | 28.46 | 288.74 | 0.4985 | -890.3 | -440.0 | |
|
previous
or next observation for the same group /

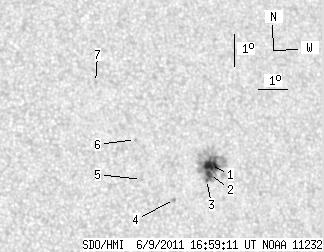

back to the solar disc SDO HMI 2011-06-09 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.87 | 62.18 | 5.64 | 35.57 | 9.54 | 337.14 | 28.66 | 288.77 | 0.5016 | -1102.9 | -451.6 | |
| 3.53 | -1.00 | 2.02 | -1.00 | 9.26 | 337.08 | 28.60 | 288.27 | 0.4995 | -1158.6 | 999999 | |
| 0.36 | -1.00 | 0.21 | -1.00 | 9.10 | 336.96 | 28.48 | 288.04 | 0.4972 | -969.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 8.49 | 335.80 | 27.31 | 287.46 | 0.4777 | -969.0 | -816.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 9.11 | 334.71 | 26.22 | 289.36 | 0.4643 | -669.0 | -416.5 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 10.34 | 334.60 | 26.12 | 291.95 | 0.4689 | -796.0 | -604.0 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 12.11 | 333.40 | 24.91 | 296.44 | 0.4619 | 710.0 | 560.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
