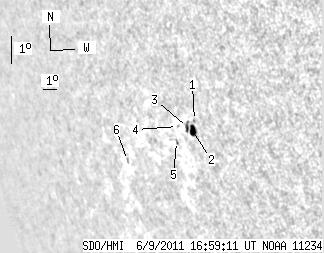

SDO HMI 2011-06-09 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.97 | 15.48 | 7.59 | 17.37 | -16.11 | 245.95 | -62.53 | 108.19 | 0.8986 | 305.4 | 61.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-09 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 1.07 | -15.66 | 247.23 | -61.26 | 107.90 | 0.8890 | 327.0 | 408.9 | |
| 5.25 | 6.43 | 5.70 | 6.97 | -15.98 | 246.92 | -61.56 | 108.20 | 0.8917 | 536.7 | 386.1 | |
| 1.72 | 4.07 | 1.89 | 4.46 | -15.89 | 246.64 | -61.84 | 108.05 | 0.8937 | 304.8 | 197.4 | |
| 0.00 | 0.54 | 0.00 | 0.61 | -15.86 | 245.97 | -62.51 | 107.91 | 0.8986 | 154.0 | 64.3 | |
| 0.00 | 1.63 | 0.00 | 1.85 | -16.34 | 245.63 | -62.85 | 108.39 | 0.9016 | -64.0 | -24.6 | |
| 0.00 | 1.81 | 0.00 | 2.41 | -16.97 | 241.51 | -66.97 | 108.47 | 0.9296 | -513.0 | -345.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
