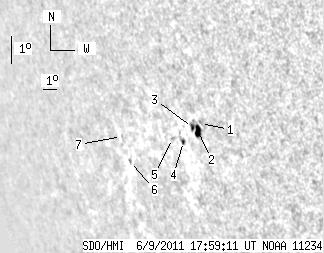

SDO HMI 2011-06-09 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.43 | 19.92 | 7.95 | 21.99 | -16.10 | 245.91 | -62.01 | 108.27 | 0.8947 | 258.1 | 81.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-09 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.91 | -15.72 | 247.31 | -60.62 | 108.07 | 0.8842 | 598.0 | 491.5 | |
| 4.89 | 11.59 | 5.20 | 12.35 | -15.98 | 247.04 | -60.88 | 108.31 | 0.8866 | 567.8 | 378.1 | |
| 1.45 | -2.00 | 1.55 | -2.00 | -15.85 | 246.71 | -61.21 | 108.11 | 0.8889 | 388.9 | 999999 | |
| 1.09 | 2.44 | 1.20 | 2.71 | -16.30 | 245.87 | -62.06 | 108.47 | 0.8958 | 163.9 | -62.7 | |
| 0.00 | 1.63 | 0.00 | 1.84 | -16.21 | 245.16 | -62.77 | 108.26 | 0.9009 | -474.0 | -410.1 | |
| 0.00 | 1.54 | 0.00 | 2.00 | -16.97 | 241.54 | -66.39 | 108.54 | 0.9260 | -492.0 | -369.2 | |
| 0.00 | 0.91 | 0.00 | 1.18 | -16.17 | 241.36 | -66.56 | 107.67 | 0.9264 | -300.0 | -269.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
