SDO HMI 2011-06-09 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.28 | 65.17 | 11.79 | 37.83 | 9.43 | 337.02 | 30.21 | 287.75 | 0.5232 | -872.7 | -397.8 | |
|
previous
or next observation for the same group /

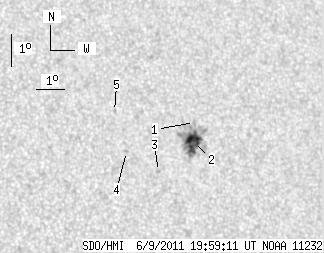

back to the solar disc SDO HMI 2011-06-09 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.06 | 10.03 | 337.27 | 30.46 | 288.74 | 0.5291 | -37.0 | -55.0 | |
| 20.28 | 58.65 | 11.79 | 34.10 | 9.42 | 337.17 | 30.36 | 287.65 | 0.5253 | -993.0 | -397.4 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 8.53 | 335.85 | 29.03 | 286.62 | 0.5029 | -894.0 | -637.9 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 9.15 | 334.78 | 27.96 | 288.39 | 0.4898 | -788.0 | -572.3 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 10.38 | 334.47 | 27.66 | 290.98 | 0.4910 | -353.0 | -380.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
