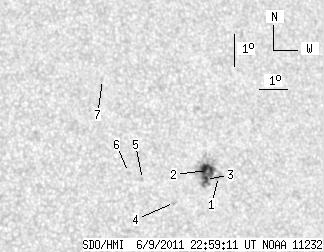

SDO HMI 2011-06-09 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.66 | 52.07 | 9.27 | 30.73 | 9.42 | 336.99 | 31.84 | 286.95 | 0.5461 | -688.3 | -436.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-09 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.16 | 0.00 | 3.06 | 9.28 | 337.56 | 32.41 | 286.44 | 0.5536 | 65.0 | 31.8 | |
| 11.86 | 42.37 | 7.02 | 25.05 | 9.46 | 337.18 | 32.03 | 286.93 | 0.5489 | -918.9 | -556.7 | |
| 3.80 | -2.00 | 2.25 | -2.00 | 9.18 | 337.08 | 31.93 | 286.48 | 0.5465 | -987.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 8.48 | 335.89 | 30.74 | 285.71 | 0.5272 | -741.0 | -626.8 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 9.19 | 334.81 | 29.66 | 287.55 | 0.5144 | -648.0 | -482.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 9.41 | 334.34 | 29.19 | 288.20 | 0.5084 | -461.0 | -323.9 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 12.29 | 333.72 | 28.57 | 293.95 | 0.5133 | 636.0 | 403.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
