SDO HMI 2011-06-09 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.41 | 23.00 | 9.18 | 23.07 | -15.95 | 246.16 | -58.99 | 108.64 | 0.8712 | 409.1 | 129.3 | |
|
previous
or next observation for the same group /

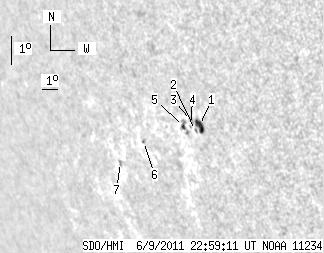

back to the solar disc SDO HMI 2011-06-09 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.51 | 8.42 | 7.28 | 8.16 | -15.79 | 247.35 | -57.80 | 108.67 | 0.8615 | 656.5 | 420.5 | |
| 0.00 | 1.36 | 0.00 | 1.33 | -15.95 | 247.04 | -58.11 | 108.80 | 0.8644 | 356.0 | 312.4 | |
| 0.00 | 2.63 | 0.00 | 2.57 | -15.63 | 246.94 | -58.21 | 108.42 | 0.8647 | 492.0 | 356.6 | |
| 0.00 | 0.81 | 0.00 | 0.80 | -15.82 | 246.80 | -58.36 | 108.61 | 0.8662 | 376.0 | 308.4 | |
| 1.90 | 6.43 | 1.90 | 6.40 | -15.83 | 246.37 | -58.79 | 108.53 | 0.8698 | 361.2 | 314.6 | |
| 0.00 | 1.36 | 0.00 | 1.48 | -16.32 | 243.54 | -61.61 | 108.58 | 0.8925 | -355.0 | -393.7 | |
| 0.00 | 1.99 | 0.00 | 2.33 | -17.00 | 241.54 | -63.61 | 109.00 | 0.9078 | -533.0 | -421.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
