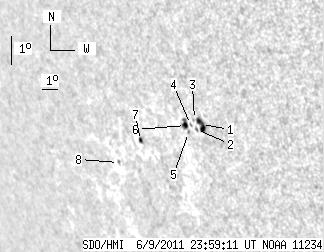

SDO HMI 2011-06-09 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.68 | 22.91 | 11.46 | 22.72 | -15.97 | 246.05 | -58.54 | 108.75 | 0.8676 | 346.4 | 177.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-09 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.97 | 8.33 | 6.64 | 7.94 | -15.78 | 247.46 | -57.14 | 108.80 | 0.8560 | 680.8 | 532.2 | |
| 0.00 | 1.00 | 0.00 | 0.96 | -15.94 | 247.09 | -57.51 | 108.91 | 0.8593 | 386.0 | 288.9 | |
| 0.00 | 1.36 | 0.00 | 1.31 | -15.62 | 247.11 | -57.49 | 108.55 | 0.8586 | 331.0 | 415.1 | |
| 0.00 | 1.27 | 0.00 | 1.23 | -15.78 | 246.80 | -57.80 | 108.67 | 0.8615 | 439.0 | 309.4 | |
| 0.00 | 0.81 | 0.00 | 0.80 | -16.04 | 246.56 | -58.03 | 108.92 | 0.8639 | 455.0 | 321.6 | |
| 2.54 | 5.43 | 2.48 | 5.31 | -15.81 | 246.49 | -58.11 | 108.65 | 0.8642 | 358.1 | 333.6 | |
| 2.17 | 3.17 | 2.34 | 3.40 | -16.31 | 243.39 | -61.20 | 108.64 | 0.8895 | -333.1 | -312.2 | |
| 0.00 | 1.54 | 0.00 | 1.77 | -17.02 | 241.47 | -63.12 | 109.11 | 0.9044 | -538.0 | -426.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
