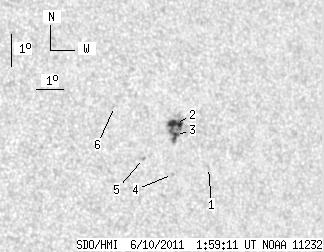

SDO HMI 2011-06-10 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.96 | 29.63 | 6.60 | 17.82 | 9.27 | 337.04 | 33.55 | 285.93 | 0.5694 | -777.3 | -648.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-10 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.66 | 8.15 | 338.24 | 34.75 | 283.60 | 0.5826 | -423.0 | -418.3 | |
| 7.61 | 25.09 | 4.58 | 15.12 | 9.51 | 337.15 | 33.66 | 286.30 | 0.5717 | -866.2 | -689.5 | |
| 3.35 | -2.00 | 2.02 | -2.00 | 9.14 | 337.11 | 33.62 | 285.68 | 0.5699 | -895.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 7.94 | 336.88 | 33.39 | 283.69 | 0.5631 | -632.0 | -555.6 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 8.44 | 335.86 | 32.37 | 284.94 | 0.5502 | -774.0 | -589.7 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 10.04 | 334.97 | 31.48 | 288.18 | 0.5433 | -635.0 | -491.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
