SDO HMI 2011-06-10 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.59 | 26.27 | 12.64 | 24.60 | -16.02 | 246.46 | -56.48 | 109.24 | 0.8504 | 392.2 | 232.1 | |
|
previous
or next observation for the same group /

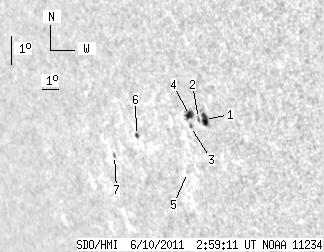

back to the solar disc SDO HMI 2011-06-10 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.98 | 10.51 | 5.43 | 9.54 | -15.84 | 247.59 | -55.36 | 109.27 | 0.8405 | 697.9 | 412.0 | |
| 0.00 | 1.45 | 0.00 | 1.33 | -15.81 | 247.26 | -55.68 | 109.16 | 0.8434 | 387.0 | 324.9 | |
| 1.27 | 1.81 | 1.18 | 1.68 | -16.07 | 246.70 | -56.25 | 109.34 | 0.8488 | 311.4 | 369.2 | |
| 4.80 | 7.97 | 4.45 | 7.39 | -15.72 | 246.79 | -56.15 | 108.95 | 0.8474 | 568.7 | 339.4 | |
| 0.00 | 1.27 | 0.00 | 1.22 | -17.55 | 245.84 | -57.10 | 110.85 | 0.8587 | 255.0 | 184.8 | |
| 1.54 | 1.72 | 1.58 | 1.76 | -16.38 | 243.30 | -59.64 | 109.01 | 0.8776 | -409.4 | -203.0 | |
| 0.00 | 1.54 | 0.00 | 1.68 | -17.03 | 241.52 | -61.43 | 109.42 | 0.8922 | -549.0 | -430.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
