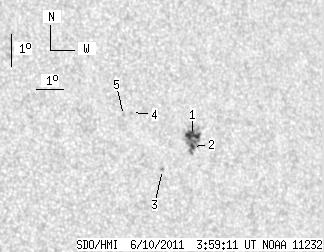

SDO HMI 2011-06-10 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.78 | 33.15 | 6.58 | 20.19 | 9.40 | 336.96 | 34.57 | 285.74 | 0.5837 | -784.5 | -622.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-10 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.88 | 30.07 | 5.42 | 18.35 | 9.46 | 337.13 | 34.74 | 285.78 | 0.5863 | -827.9 | -628.7 | |
| 1.90 | -1.00 | 1.16 | -1.00 | 9.12 | 337.09 | 34.70 | 285.23 | 0.5847 | -954.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 8.42 | 335.90 | 33.51 | 284.46 | 0.5661 | -805.0 | -686.9 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 10.18 | 334.95 | 32.55 | 287.90 | 0.5587 | -637.0 | -522.9 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 10.09 | 334.64 | 32.25 | 287.88 | 0.5541 | -480.0 | -462.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
