SDO HMI 2011-06-10 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.48 | 25.55 | 15.06 | 23.36 | -15.94 | 246.29 | -55.56 | 109.35 | 0.8421 | 313.3 | 187.2 | |
|
previous
or next observation for the same group /

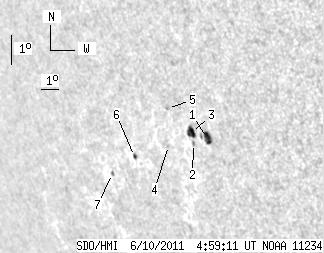

back to the solar disc SDO HMI 2011-06-10 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.61 | 9.51 | 5.83 | 8.40 | -15.86 | 247.69 | -54.16 | 109.57 | 0.8297 | 685.4 | 467.1 | |
| 0.00 | 1.54 | 0.00 | 1.39 | -16.03 | 246.85 | -54.99 | 109.57 | 0.8376 | 497.0 | 306.8 | |
| 6.88 | 8.24 | 6.19 | 7.41 | -15.68 | 246.88 | -54.96 | 109.17 | 0.8367 | 430.0 | 402.3 | |
| 0.00 | 1.18 | 0.00 | 1.10 | -16.10 | 245.41 | -56.44 | 109.34 | 0.8506 | -273.0 | -222.1 | |
| 0.00 | 1.00 | 0.00 | 0.92 | -14.93 | 245.84 | -56.01 | 108.07 | 0.8447 | 146.0 | 123.1 | |
| 1.72 | 2.45 | 1.71 | 2.43 | -16.47 | 243.21 | -58.63 | 109.31 | 0.8696 | -424.8 | -334.1 | |
| 1.27 | 1.63 | 1.33 | 1.71 | -17.02 | 241.54 | -60.31 | 109.61 | 0.8837 | -483.6 | -497.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
