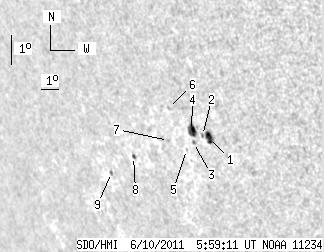

SDO HMI 2011-06-10 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.31 | 26.55 | 13.64 | 23.89 | -15.89 | 246.31 | -54.99 | 109.43 | 0.8369 | 336.3 | 146.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-10 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.89 | 7.16 | 5.12 | 6.22 | -15.85 | 247.74 | -53.56 | 109.71 | 0.8242 | 706.7 | 601.9 | |
| 0.00 | 1.09 | 0.00 | 0.95 | -15.79 | 247.44 | -53.86 | 109.57 | 0.8269 | 419.0 | 356.9 | |
| 0.00 | 1.54 | 0.00 | 1.37 | -16.02 | 246.86 | -54.44 | 109.70 | 0.8326 | 460.0 | 362.0 | |
| 7.79 | 9.60 | 6.91 | 8.50 | -15.64 | 246.90 | -54.40 | 109.26 | 0.8315 | 448.5 | 388.5 | |
| 0.00 | 1.00 | 0.00 | 0.90 | -16.24 | 246.38 | -54.92 | 109.85 | 0.8374 | 240.0 | 187.5 | |
| 0.00 | 1.54 | 0.00 | 1.39 | -14.95 | 245.90 | -55.40 | 108.22 | 0.8394 | 301.0 | 205.5 | |
| 0.00 | 0.91 | 0.00 | 0.83 | -15.96 | 245.49 | -55.81 | 109.32 | 0.8448 | -273.0 | -233.2 | |
| 1.27 | 1.99 | 1.24 | 1.95 | -16.49 | 243.20 | -58.10 | 109.45 | 0.8653 | -422.0 | -361.5 | |
| 0.36 | 1.72 | 0.37 | 1.78 | -17.01 | 241.57 | -59.73 | 109.72 | 0.8792 | -538.0 | -442.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
