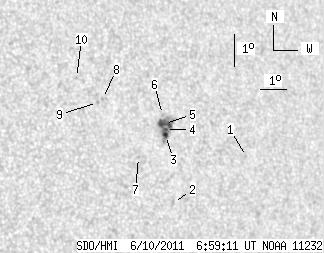

SDO HMI 2011-06-10 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.43 | 33.17 | 5.24 | 20.59 | 9.25 | 336.91 | 36.16 | 284.91 | 0.6049 | -619.2 | -511.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-10 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.59 | 8.42 | 340.16 | 39.41 | 282.64 | 0.6459 | -561.0 | -470.0 | |
| 0.00 | 2.54 | 0.00 | 1.57 | 7.02 | 337.16 | 36.41 | 281.17 | 0.6028 | -640.0 | -501.1 | |
| 1.45 | 24.55 | 0.90 | 15.29 | 9.08 | 337.07 | 36.32 | 284.57 | 0.6066 | -874.5 | -581.6 | |
| 0.91 | -3.00 | 0.56 | -3.00 | 9.26 | 337.10 | 36.35 | 284.86 | 0.6074 | -1061.5 | 999999 | |
| 6.07 | -3.00 | 3.78 | -3.00 | 9.45 | 337.08 | 36.33 | 285.16 | 0.6077 | -826.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 9.72 | 337.04 | 36.29 | 285.63 | 0.6079 | -561.0 | -460.6 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 8.40 | 335.97 | 35.22 | 283.81 | 0.5897 | -654.0 | -546.1 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 10.23 | 334.83 | 34.08 | 287.29 | 0.5797 | -682.0 | -529.4 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 10.10 | 334.62 | 33.87 | 287.17 | 0.5765 | -691.0 | -612.8 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 10.88 | 333.94 | 33.19 | 288.78 | 0.5699 | 715.0 | 597.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
