SDO HMI 2011-06-10 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.69 | 26.64 | 9.00 | 23.04 | -15.81 | 246.36 | -53.29 | 109.75 | 0.8212 | 295.9 | 59.4 | |
|
previous
or next observation for the same group /

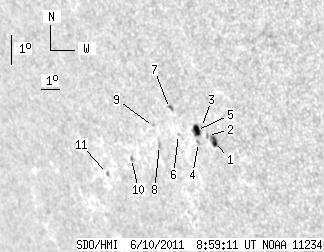

back to the solar disc SDO HMI 2011-06-10 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.44 | 6.07 | 3.70 | 5.07 | -15.93 | 247.95 | -51.70 | 110.28 | 0.8067 | 716.7 | 588.1 | |
| 0.00 | 1.72 | 0.00 | 1.44 | -15.74 | 247.66 | -51.99 | 109.97 | 0.8091 | 521.0 | 440.0 | |
| 0.00 | 0.63 | 0.00 | 0.53 | -15.49 | 247.44 | -52.21 | 109.61 | 0.8107 | 468.0 | 366.0 | |
| 0.00 | 1.27 | 0.00 | 1.08 | -15.97 | 247.11 | -52.55 | 110.10 | 0.8149 | 362.0 | 327.5 | |
| 5.80 | 7.70 | 4.91 | 6.53 | -15.58 | 247.15 | -52.51 | 109.66 | 0.8137 | 544.2 | 363.0 | |
| 0.00 | 0.82 | 0.00 | 0.71 | -15.72 | 246.14 | -53.51 | 109.57 | 0.8235 | 336.0 | 307.9 | |
| 0.45 | 2.45 | 0.39 | 2.12 | -14.90 | 245.97 | -53.68 | 108.55 | 0.8235 | 390.0 | 308.4 | |
| 0.00 | 2.17 | 0.00 | 1.95 | -16.08 | 244.97 | -54.68 | 109.72 | 0.8350 | -636.0 | -489.4 | |
| 0.00 | 0.82 | 0.00 | 0.73 | -15.47 | 244.88 | -54.77 | 108.99 | 0.8347 | -531.0 | -452.9 | |
| 0.00 | 1.45 | 0.00 | 1.36 | -16.50 | 243.21 | -56.45 | 109.82 | 0.8514 | -466.0 | -363.1 | |
| 0.00 | 1.54 | 0.00 | 1.52 | -16.99 | 241.55 | -58.10 | 110.03 | 0.8662 | -593.0 | -469.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
