SDO HMI 2011-06-10 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.69 | 23.19 | 6.17 | 14.74 | 9.12 | 337.04 | 37.93 | 284.11 | 0.6283 | -690.9 | -493.0 | |
|
previous
or next observation for the same group /

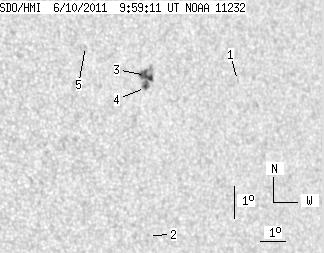

back to the solar disc SDO HMI 2011-06-10 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.24 | 9.25 | 340.78 | 41.68 | 283.31 | 0.6767 | -372.0 | -424.5 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 4.51 | 336.75 | 37.64 | 276.82 | 0.6154 | -549.0 | -417.0 | |
| 8.15 | 20.47 | 5.19 | 13.03 | 9.42 | 337.10 | 37.99 | 284.57 | 0.6297 | -768.0 | -507.1 | |
| 1.54 | -3.00 | 0.98 | -3.00 | 9.05 | 337.05 | 37.95 | 284.00 | 0.6281 | -869.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 10.32 | 334.89 | 35.79 | 286.76 | 0.6030 | -577.0 | -467.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
