SDO HMI 2011-06-10 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.23 | 28.98 | 9.50 | 24.69 | -15.81 | 246.51 | -52.60 | 109.92 | 0.8147 | 312.2 | 192.0 | |
|
previous
or next observation for the same group /

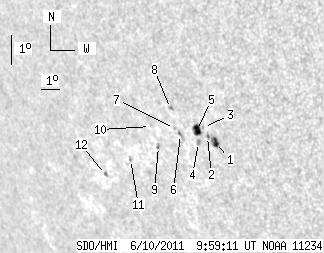

back to the solar disc SDO HMI 2011-06-10 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.53 | 6.25 | 2.91 | 5.15 | -15.95 | 248.01 | -51.10 | 110.47 | 0.8009 | 688.7 | 611.0 | |
| 0.00 | 2.08 | 0.00 | 1.73 | -15.76 | 247.67 | -51.44 | 110.15 | 0.8038 | 506.0 | 421.0 | |
| 0.00 | 0.63 | 0.00 | 0.53 | -15.48 | 247.57 | -51.54 | 109.78 | 0.8042 | 315.0 | 254.0 | |
| 0.00 | 2.36 | 0.00 | 1.98 | -15.96 | 247.14 | -51.97 | 110.25 | 0.8094 | 605.0 | 422.4 | |
| 6.52 | 7.70 | 5.45 | 6.44 | -15.58 | 247.17 | -51.94 | 109.79 | 0.8082 | 565.0 | 338.2 | |
| 0.00 | 1.81 | 0.00 | 1.55 | -15.71 | 246.29 | -52.82 | 109.73 | 0.8170 | 406.0 | 281.3 | |
| 0.00 | 1.00 | 0.00 | 0.86 | -15.52 | 246.04 | -53.06 | 109.45 | 0.8189 | 244.0 | 147.2 | |
| 0.00 | 1.90 | 0.00 | 1.63 | -14.89 | 246.06 | -53.04 | 108.69 | 0.8174 | 512.0 | 375.5 | |
| 0.00 | 1.81 | 0.00 | 1.60 | -16.10 | 244.96 | -54.15 | 109.87 | 0.8302 | -525.0 | -549.0 | |
| 0.00 | 0.72 | 0.00 | 0.64 | -15.47 | 244.78 | -54.33 | 109.08 | 0.8306 | -537.0 | -446.6 | |
| 0.00 | 1.36 | 0.00 | 1.26 | -16.53 | 243.22 | -55.89 | 109.97 | 0.8466 | -387.0 | -326.5 | |
| 1.18 | 1.36 | 1.14 | 1.32 | -17.02 | 241.54 | -57.57 | 110.17 | 0.8619 | -391.1 | -471.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
