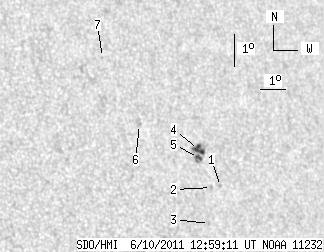

SDO HMI 2011-06-10 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.06 | 23.18 | 5.90 | 15.06 | 9.24 | 336.91 | 39.45 | 283.88 | 0.6484 | -583.1 | -390.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-10 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.89 | 8.24 | 337.85 | 40.39 | 282.11 | 0.6582 | -660.0 | -470.5 | |
| 0.00 | 1.54 | 0.00 | 1.01 | 8.21 | 337.48 | 40.02 | 282.15 | 0.6533 | -673.0 | -546.5 | |
| 0.00 | 0.82 | 0.00 | 0.53 | 7.11 | 337.28 | 39.82 | 280.51 | 0.6485 | -677.0 | -589.6 | |
| 6.43 | 16.93 | 4.19 | 11.03 | 9.38 | 337.11 | 39.65 | 284.02 | 0.6512 | -697.3 | -395.2 | |
| 2.63 | -4.00 | 1.71 | -4.00 | 9.14 | 337.08 | 39.62 | 283.66 | 0.6502 | -834.7 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.20 | 10.16 | 334.88 | 37.42 | 285.91 | 0.6242 | -612.0 | -395.5 | |
| 0.00 | 0.63 | 0.00 | 0.40 | 12.25 | 333.75 | 36.29 | 289.61 | 0.6163 | 615.0 | 513.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
