SDO HMI 2011-06-10 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.57 | 44.00 | 14.89 | 35.79 | -15.87 | 246.38 | -50.53 | 110.55 | 0.7948 | 283.5 | 35.5 | |
|
previous
or next observation for the same group /

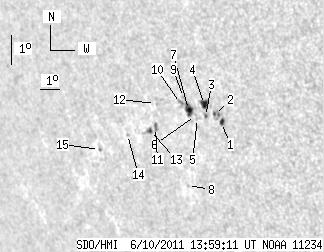

back to the solar disc SDO HMI 2011-06-10 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.54 | 3.26 | 1.99 | 2.56 | -16.06 | 248.16 | -48.75 | 111.28 | 0.7776 | 665.9 | 624.8 | |
| 1.18 | 5.43 | 0.93 | 4.27 | -15.80 | 247.90 | -49.01 | 110.89 | 0.7796 | 528.3 | 572.1 | |
| 1.18 | 2.08 | 0.94 | 1.66 | -15.87 | 247.44 | -49.47 | 110.84 | 0.7844 | 433.5 | 424.2 | |
| 4.80 | 5.98 | 3.80 | 4.74 | -15.49 | 247.52 | -49.39 | 110.39 | 0.7827 | 689.4 | 460.8 | |
| 0.00 | 1.27 | 0.00 | 1.02 | -15.94 | 247.03 | -49.88 | 110.80 | 0.7888 | 481.0 | 376.4 | |
| 0.00 | 0.36 | 0.00 | 0.29 | -15.84 | 246.96 | -49.95 | 110.66 | 0.7892 | 466.0 | 378.2 | |
| 7.33 | 8.96 | 5.92 | 7.23 | -15.65 | 246.68 | -50.23 | 110.35 | 0.7916 | 466.2 | 416.5 | |
| 0.00 | 0.45 | 0.00 | 0.38 | -18.09 | 245.72 | -51.19 | 113.04 | 0.8071 | 421.0 | 392.8 | |
| 0.00 | 1.45 | 0.00 | 1.17 | -15.28 | 246.55 | -50.35 | 109.85 | 0.7919 | 554.0 | 404.3 | |
| 0.00 | 4.07 | 0.00 | 3.31 | -15.47 | 246.34 | -50.57 | 110.03 | 0.7945 | 219.0 | 79.6 | |
| 0.00 | 3.17 | 0.00 | 2.67 | -16.24 | 244.79 | -52.12 | 110.55 | 0.8115 | -715.0 | -607.5 | |
| 0.00 | 0.72 | 0.00 | 0.60 | -15.48 | 245.07 | -51.84 | 109.70 | 0.8071 | -507.0 | -523.0 | |
| 1.54 | 4.35 | 1.31 | 3.70 | -16.34 | 244.49 | -52.41 | 110.59 | 0.8145 | -572.8 | -553.7 | |
| 0.00 | 1.18 | 0.00 | 1.03 | -16.47 | 243.22 | -53.69 | 110.43 | 0.8268 | -551.0 | -460.7 | |
| 0.00 | 1.27 | 0.00 | 1.16 | -16.96 | 241.46 | -55.44 | 110.59 | 0.8435 | -448.0 | -382.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
