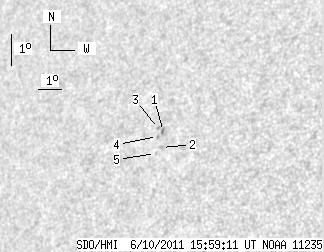

SDO HMI 2011-06-10 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.80 | 0.00 | 5.44 | 15.68 | 252.96 | -42.84 | 67.98 | 0.7085 | -590.6 | -530.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-10 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.08 | 0.00 | 2.15 | 15.86 | 253.04 | -42.76 | 67.70 | 0.7081 | -631.0 | -610.5 | |
| 0.00 | 1.45 | 0.00 | 1.01 | 15.35 | 253.09 | -42.71 | 68.38 | 0.7059 | -738.0 | -573.6 | |
| 0.00 | 1.36 | 0.00 | 0.95 | 15.95 | 252.80 | -43.00 | 67.67 | 0.7112 | -487.0 | -415.7 | |
| 0.00 | 1.00 | 0.00 | 0.70 | 15.70 | 252.82 | -42.98 | 68.00 | 0.7101 | -559.0 | -458.1 | |
| 0.00 | 0.91 | 0.00 | 0.63 | 15.16 | 252.88 | -42.92 | 68.71 | 0.7078 | -538.0 | -438.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
