SDO HMI 2011-06-10 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.74 | 62.94 | 16.24 | 49.13 | -15.88 | 246.14 | -48.55 | 111.14 | 0.7748 | 59.8 | 158.2 | |
|
previous
or next observation for the same group /

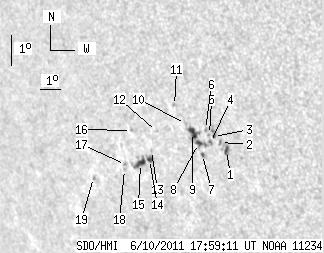

back to the solar disc SDO HMI 2011-06-10 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.08 | 6.88 | 2.31 | 5.16 | -16.01 | 248.33 | -46.37 | 111.99 | 0.7525 | 752.1 | 662.7 | |
| 0.00 | 2.08 | 0.00 | 1.56 | -15.75 | 248.13 | -46.57 | 111.59 | 0.7539 | 688.0 | 644.7 | |
| 1.00 | 5.25 | 0.75 | 3.95 | -15.57 | 247.86 | -46.83 | 111.27 | 0.7562 | 647.9 | 493.6 | |
| 0.00 | 1.81 | 0.00 | 1.37 | -15.76 | 247.66 | -47.03 | 111.45 | 0.7589 | 750.0 | 571.0 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -15.50 | 247.69 | -47.00 | 111.13 | 0.7578 | 233.0 | 425.9 | |
| 0.00 | 1.00 | 0.00 | 0.75 | -15.35 | 247.55 | -47.14 | 110.89 | 0.7589 | 618.0 | 503.6 | |
| 0.63 | 1.72 | 0.49 | 1.32 | -16.14 | 247.17 | -47.53 | 111.78 | 0.7652 | 352.9 | 310.6 | |
| 2.63 | 18.83 | 2.01 | 14.43 | -15.79 | 247.09 | -47.60 | 111.31 | 0.7650 | 486.3 | 317.8 | |
| 4.98 | -8.00 | 3.82 | -8.00 | -15.44 | 246.91 | -47.78 | 110.81 | 0.7659 | 505.8 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.70 | -15.16 | 246.67 | -48.02 | 110.38 | 0.7677 | 547.0 | 429.8 | |
| 0.00 | 1.63 | 0.00 | 1.26 | -14.60 | 246.31 | -48.38 | 109.56 | 0.7700 | 575.0 | 480.6 | |
| 0.00 | 1.00 | 0.00 | 0.79 | -15.42 | 245.19 | -49.50 | 110.28 | 0.7837 | -751.0 | -584.7 | |
| 0.00 | 1.00 | 0.00 | 0.80 | -16.03 | 244.74 | -49.95 | 110.90 | 0.7898 | -536.0 | -529.4 | |
| 2.81 | 14.49 | 2.27 | 11.81 | -16.32 | 244.54 | -50.15 | 111.20 | 0.7925 | -764.5 | -524.8 | |
| 5.61 | -14.00 | 4.59 | -14.00 | -16.45 | 244.04 | -50.65 | 111.22 | 0.7977 | -688.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.25 | -15.40 | 243.96 | -50.73 | 109.91 | 0.7961 | 406.0 | 272.5 | |
| 0.00 | 1.72 | 0.00 | 1.43 | -16.49 | 243.27 | -51.42 | 111.04 | 0.8054 | -390.0 | -311.3 | |
| 0.00 | 1.27 | 0.00 | 1.06 | -16.65 | 243.16 | -51.53 | 111.21 | 0.8069 | -586.0 | -507.5 | |
| 0.00 | 1.09 | 0.00 | 0.94 | -16.91 | 241.43 | -53.26 | 111.07 | 0.8238 | -568.0 | -463.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
