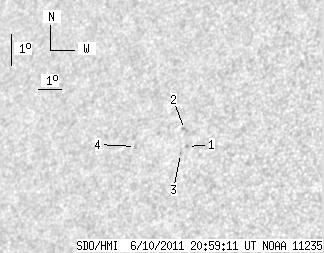

SDO HMI 2011-06-10 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.16 | 0.00 | 3.48 | 15.60 | 252.59 | -40.43 | 67.15 | 0.6800 | -637.5 | -551.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-10 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.54 | 15.41 | 253.25 | -39.77 | 67.16 | 0.6715 | -681.0 | -614.3 | |
| 0.00 | 2.26 | 0.00 | 1.52 | 15.95 | 253.00 | -40.02 | 66.50 | 0.6765 | -700.0 | -629.2 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 15.19 | 253.01 | -40.01 | 67.57 | 0.6735 | -587.0 | -414.5 | |
| 0.00 | 1.18 | 0.00 | 0.81 | 15.40 | 251.08 | -41.95 | 68.04 | 0.6972 | -582.0 | -464.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
