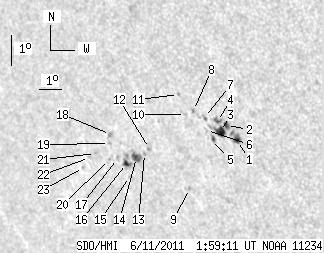

SDO HMI 2011-06-11 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.01 | 71.29 | 15.13 | 51.76 | -16.04 | 245.75 | -44.51 | 112.76 | 0.7322 | 36.7 | 51.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-11 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.99 | 7.97 | 1.38 | 5.51 | -15.94 | 248.63 | -41.63 | 113.73 | 0.7001 | 837.4 | 783.0 | |
| 2.45 | 14.76 | 1.70 | 10.29 | -15.46 | 248.28 | -41.98 | 112.94 | 0.7023 | 902.9 | 513.2 | |
| 6.88 | -2.00 | 4.80 | -2.00 | -15.66 | 247.97 | -42.29 | 113.08 | 0.7065 | 711.1 | 999999 | |
| 0.45 | 3.89 | 0.32 | 2.71 | -15.34 | 247.92 | -42.33 | 112.63 | 0.7059 | 797.2 | 662.6 | |
| 0.54 | 2.99 | 0.38 | 2.10 | -15.91 | 247.52 | -42.74 | 113.24 | 0.7126 | 339.0 | 327.7 | |
| 0.00 | 1.90 | 0.00 | 1.34 | -15.63 | 247.38 | -42.88 | 112.80 | 0.7132 | 342.0 | 274.5 | |
| 0.00 | 2.36 | 0.00 | 1.66 | -15.22 | 247.40 | -42.86 | 112.25 | 0.7115 | 726.0 | 521.2 | |
| 0.00 | 1.36 | 0.00 | 0.96 | -15.00 | 246.97 | -43.28 | 111.80 | 0.7156 | 415.0 | 443.2 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -17.48 | 246.10 | -44.16 | 114.75 | 0.7340 | 677.0 | 599.2 | |
| 0.00 | 1.54 | 0.00 | 1.10 | -15.13 | 246.59 | -43.67 | 111.83 | 0.7203 | 609.0 | 387.4 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -14.50 | 246.45 | -43.81 | 110.93 | 0.7199 | 585.0 | 429.7 | |
| 0.00 | 1.90 | 0.00 | 1.41 | -16.22 | 244.68 | -45.58 | 112.58 | 0.7449 | -730.0 | -538.8 | |
| 0.00 | 1.36 | 0.00 | 1.01 | -16.38 | 244.41 | -45.85 | 112.69 | 0.7484 | -715.0 | -595.6 | |
| 5.98 | 8.79 | 4.49 | 6.59 | -16.51 | 244.00 | -46.26 | 112.71 | 0.7532 | -767.3 | -644.1 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -17.12 | 243.48 | -46.78 | 113.31 | 0.7606 | 112.0 | 178.0 | |
| 2.72 | 8.51 | 2.06 | 6.45 | -16.71 | 243.47 | -46.79 | 112.78 | 0.7593 | -652.4 | -547.3 | |
| 0.00 | 1.99 | 0.00 | 1.52 | -16.55 | 243.10 | -47.16 | 112.45 | 0.7628 | -603.0 | -431.8 | |
| 0.00 | 2.26 | 0.00 | 1.72 | -15.79 | 243.01 | -47.24 | 111.46 | 0.7614 | -662.0 | -588.4 | |
| 0.00 | 1.45 | 0.00 | 1.11 | -16.07 | 242.88 | -47.38 | 111.78 | 0.7637 | -540.0 | -384.3 | |
| 0.00 | 0.82 | 0.00 | 0.63 | -16.58 | 242.71 | -47.54 | 112.37 | 0.7669 | -498.0 | -462.8 | |
| 0.00 | 1.36 | 0.00 | 1.06 | -16.40 | 242.11 | -48.15 | 111.94 | 0.7726 | -215.0 | -151.5 | |
| 0.00 | 1.09 | 0.00 | 0.85 | -16.53 | 241.78 | -48.48 | 112.00 | 0.7764 | -563.0 | -523.0 | |
| 0.00 | 1.54 | 0.00 | 1.22 | -16.85 | 241.38 | -48.88 | 112.27 | 0.7814 | -558.0 | -372.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
