SDO HMI 2011-06-11 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.37 | 70.84 | 16.64 | 51.18 | -16.03 | 245.50 | -44.20 | 112.87 | 0.7288 | 117.2 | -65.8 | |
|
previous
or next observation for the same group /

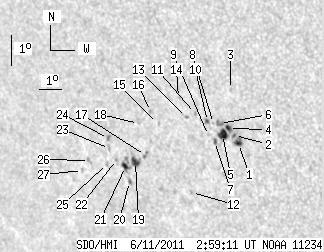

back to the solar disc SDO HMI 2011-06-11 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.72 | 5.44 | 1.86 | 3.73 | -15.93 | 248.63 | -41.08 | 113.96 | 0.6937 | 821.2 | 784.1 | |
| 0.72 | 1.18 | 0.50 | 0.81 | -15.67 | 248.53 | -41.18 | 113.56 | 0.6939 | 775.4 | 785.2 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -14.22 | 248.70 | -41.01 | 111.61 | 0.6865 | 486.0 | 368.4 | |
| 2.36 | 11.78 | 1.62 | 8.12 | -15.45 | 248.33 | -41.38 | 113.18 | 0.6954 | 916.1 | 582.1 | |
| 6.43 | -4.00 | 4.44 | -4.00 | -15.64 | 248.02 | -41.68 | 113.31 | 0.6996 | 716.5 | 999999 | |
| 0.00 | 4.17 | 0.00 | 2.88 | -15.30 | 247.98 | -41.72 | 112.82 | 0.6988 | 774.0 | 668.5 | |
| 1.63 | 2.36 | 1.14 | 1.64 | -15.87 | 247.63 | -42.08 | 113.46 | 0.7050 | 293.7 | 326.2 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -15.30 | 247.73 | -41.98 | 112.72 | 0.7017 | 486.0 | 529.2 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -15.68 | 247.42 | -42.29 | 113.11 | 0.7067 | 359.0 | 299.6 | |
| 0.54 | 1.72 | 0.38 | 1.20 | -15.24 | 247.49 | -42.22 | 112.54 | 0.7043 | 681.8 | 556.3 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -14.99 | 247.04 | -42.67 | 112.02 | 0.7086 | 503.0 | 477.8 | |
| 0.00 | 1.36 | 0.00 | 0.98 | -17.50 | 246.17 | -43.54 | 115.04 | 0.7274 | 678.0 | 568.9 | |
| 0.00 | 1.36 | 0.00 | 0.96 | -15.11 | 246.61 | -43.09 | 112.04 | 0.7138 | 501.0 | 434.7 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -14.48 | 246.42 | -43.28 | 111.11 | 0.7139 | 584.0 | 509.6 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -15.31 | 245.29 | -44.42 | 111.81 | 0.7294 | -461.0 | -523.6 | |
| 0.00 | 1.36 | 0.00 | 0.98 | -14.94 | 245.08 | -44.63 | 111.24 | 0.7305 | -563.0 | -416.7 | |
| 0.00 | 2.63 | 0.00 | 1.93 | -16.34 | 244.46 | -45.24 | 112.85 | 0.7418 | -485.0 | -611.3 | |
| 0.00 | 1.09 | 0.00 | 0.80 | -15.32 | 244.44 | -45.27 | 111.52 | 0.7388 | 327.0 | 201.2 | |
| 4.89 | 18.12 | 3.64 | 13.53 | -16.53 | 243.95 | -45.76 | 112.92 | 0.7479 | -793.9 | -576.5 | |
| 1.00 | 2.17 | 0.75 | 1.64 | -17.17 | 243.47 | -46.24 | 113.57 | 0.7551 | 293.6 | 81.8 | |
| 3.08 | -19.00 | 2.31 | -19.00 | -16.69 | 243.44 | -46.27 | 112.95 | 0.7539 | -670.4 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -16.47 | 243.09 | -46.62 | 112.55 | 0.7569 | -501.0 | -410.5 | |
| 0.00 | 1.99 | 0.00 | 1.51 | -16.12 | 242.88 | -46.83 | 112.03 | 0.7581 | -495.0 | -397.3 | |
| 0.00 | 2.26 | 0.00 | 1.71 | -15.81 | 242.93 | -46.78 | 111.64 | 0.7566 | -646.0 | -575.3 | |
| 0.00 | 1.90 | 0.00 | 1.45 | -16.60 | 242.63 | -47.08 | 112.56 | 0.7621 | -600.0 | -480.2 | |
| 0.00 | 2.90 | 0.00 | 2.24 | -16.51 | 241.81 | -47.90 | 112.17 | 0.7704 | -496.0 | -525.1 | |
| 0.00 | 1.18 | 0.00 | 0.92 | -16.84 | 241.37 | -48.34 | 112.43 | 0.7759 | -571.0 | -430.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
