SDO HMI 2011-06-11 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.98 | 13.23 | 2.62 | 8.61 | 14.72 | 250.40 | -38.21 | 67.48 | 0.6495 | -363.3 | -230.5 | |
|
previous
or next observation for the same group /

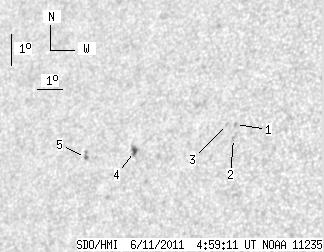

back to the solar disc SDO HMI 2011-06-11 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.96 | 15.43 | 253.63 | -34.98 | 64.90 | 0.6124 | -679.0 | -561.8 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 14.99 | 253.64 | -34.97 | 65.58 | 0.6103 | -625.0 | -583.7 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 15.43 | 253.28 | -35.32 | 65.09 | 0.6168 | -604.0 | -492.5 | |
| 3.44 | 6.25 | 2.25 | 4.10 | 14.56 | 249.82 | -38.79 | 68.04 | 0.6561 | -718.3 | -579.1 | |
| 0.54 | 3.08 | 0.37 | 2.07 | 14.36 | 247.85 | -40.76 | 69.11 | 0.6793 | 816.7 | 597.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
